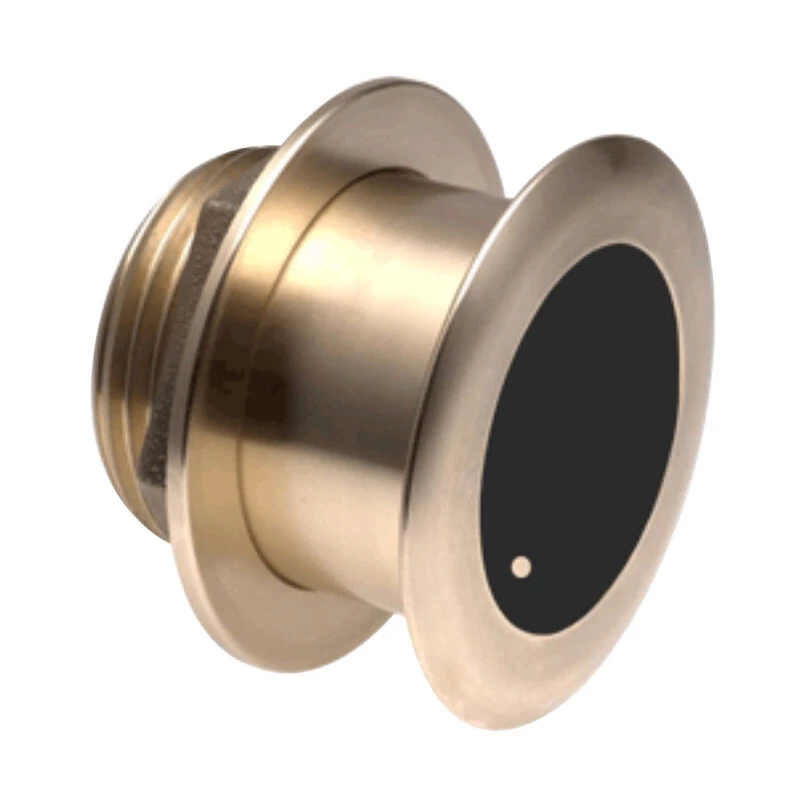

GARMIN Airmar B175H 20° Tilt Thru-Hull High CHIRP Transducer

Step up to 1kW without a fairing block with this flush-mounted bronze housing that protrudes less than 1/4″ outside the hull and can sit on the trailer rollers/bunks without damage. The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for a choice of frequency. An excellent option for fiberglass and wood hulls, this 8-pin transducer has a depth range of up to 1200′, an operating frequency from 130 to 210kHz, a beam width of 9 to 15 Degrees and 16 to 24 Degrees deadrise. Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

• 20 Degrees tilt, 8-pin
• Compatible with GPSMAP 557xs, GPSMAP® 7407xsv, GPSMAP® 7408xsv, GPSMAP® 7408xsv, GPSMAP 751xs, GSD™ 25 premium sonar module
• An excellent choice for fiberglass and wood hulls
• This element is tilted inside the housing that provides built-in deadrise compensation and eliminates the need for a fairing block
