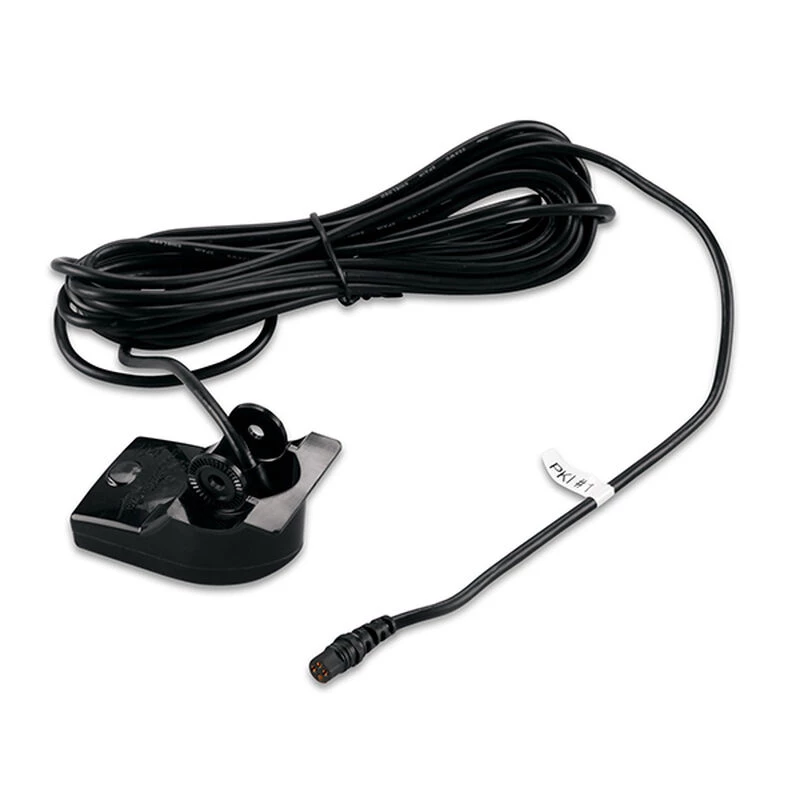

GARMIN echo™ Series Transom Mount Dual Frequency Transducer

This dual beam transducer replaces the one included with echo™ series fishfinders.

A 500W 4-pin transducer, with an operating frequency of 77 to 200kHz, a beamwidth of 45 to 15 degrees and whiuch mounts on a 0° to 70° transom. Compatible with: echo™ 100, echo™ 150, echo™ 200, echo™ 300c, echo™ 500c and echo™ 550c.

Specifications

• Style: Transom mount
• Cable Length: 30′(6m)
• Connector: 4-pin
• Transom Angle: 0°-70°
• Monitors: Depth/Temperature
• Material: Plastic
• Transmit Power: 500W (RMS)
• Frequency: 77/200kHz
• Max. Depth: 1,900′
• Beamwidths: 45°/15°
