GARMIN Spread Spectrum CHIRP Transducers
Original price was: $569.00.$98.99Current price is: $98.99.
- We take quality seriously.
- 7-Day Returns, 100% Quality
- High quality products, low prices.
- 7 days free returns
Step up to 1kW of power without need for a fairing.

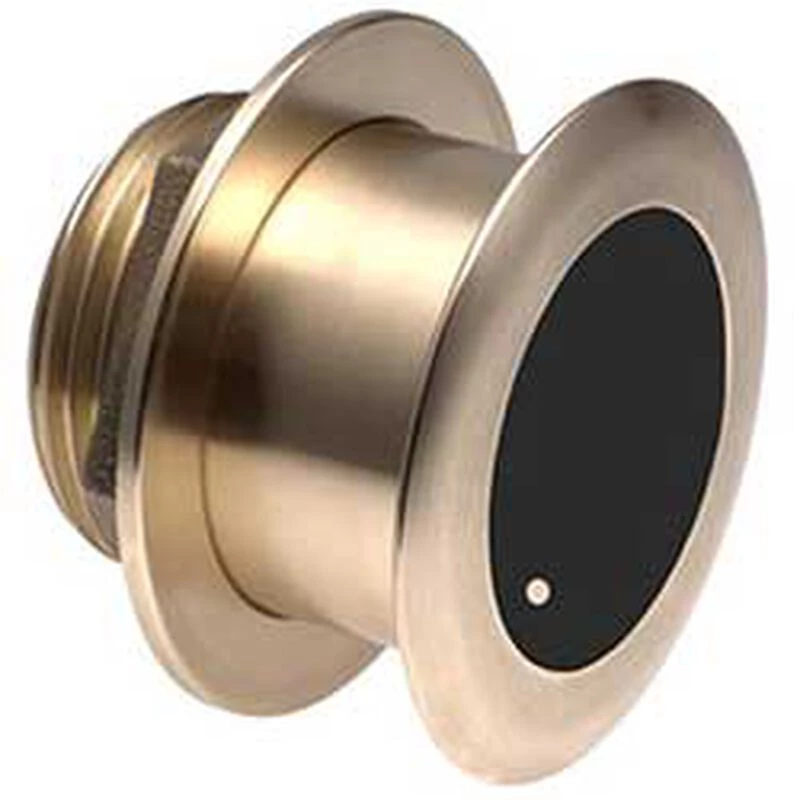

Step up to 1kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4″ outside the hull and can sit on the trailer rollers/bunks without damage.
The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. And, low, medium and high frequency versions provide maximum flexibility for the choice of frequencies. An excellent choice for fiberglass and wood hulls.
Specifications
- Style: Thru-hull
- Cable Length: 39′
- Connector: 8-pin
- Monitors: Depth/Temperature
- Material: Bronze
- Transmit Power: 1kW (RMS)
| Type | Frequency Range | Beamwidth | Maximum Deadrise Angle | Connector | GARMI# | Model |
|---|---|---|---|---|---|---|
| Airmar B175L (0° Tilt) | Low CHIRP (40-60kHz) | 16°-25° | 0°-7° | 8-pin | 010-11938-20 | 14390793 |
| Airmar B175L (12° Tilt) | Low CHIRP (40-60kHz) | 16°-25° | 8°-15° | 8-pin | 010-11938-21 | 14390801 |
| Airmar B175L (20° Tilt) | Low CHIRP (40-60kHz) | 16°-25° | 16°-24° | 8-pin | 010-11938-22 | 14390819 |
| Airmar B175M (0° Tilt) | Medium CHIRP (85-135kHz) | 11°-16° | 0°-7° | 8-pin | 010-11939-20 | 14390827 |
| Airmar B175M (12° Tilt) | Medium CHIRP (85-135kHz) | 11°-16° | 8°-15° | 8-pin | 010-11939-21 | 14390835 |
| Airmar B175M (20° Tilt) | Medium CHIRP (85-135kHz) | 11°-16° | 16°-24° | 8-pin | 010-11939-22 | 14390843 |
| Option | B175M 0° Tilt Thru-Hull Medium CHIRP Transducer, B175M 20° Tilt Thru-Hull Medium CHIRP Transducer, B175L 0° Tilt Thru-Hull Low CHIRP Transducer, B175L 12° Tilt Thru-Hull Low CHIRP Transducer, B175L 20° Tilt Thru-Hull Low CHIRP Transducer, B175M 12° Tilt Thru-Hull Medium CHIRP Transducer |
|---|
