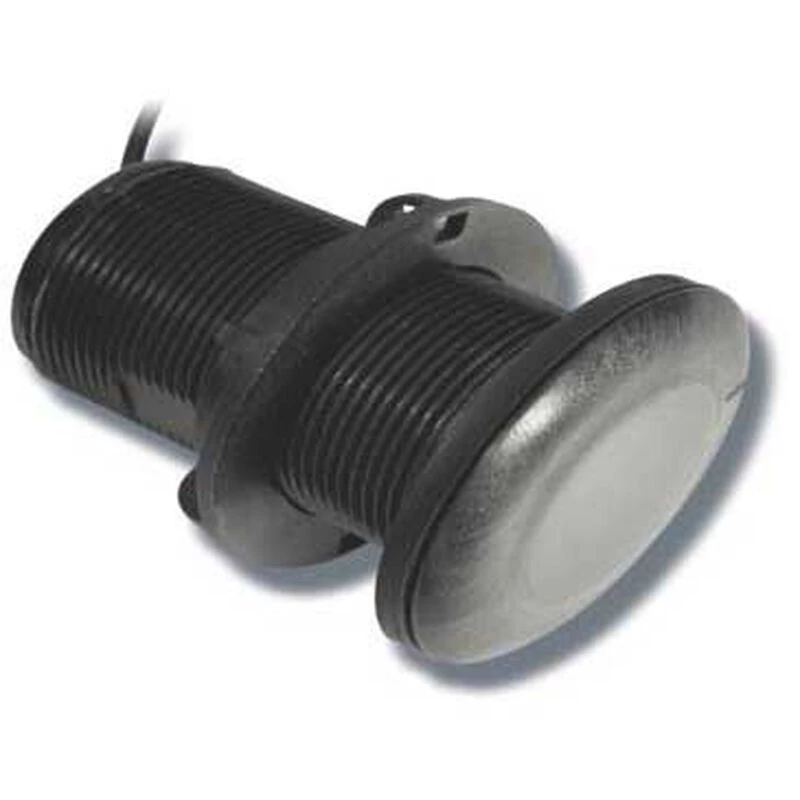

RAYMARINE P19 Low Profile Thru-Hull Traditional Transducer

Industry standard depth transducer with 200kHz frequency.

Inside the housing, the ceramic element is tilted for built-in deadrise compensation. The resulting vertical beam gives excellent echo returns for more accurate depth readings. The P19 without tilt has been the industry standard for many years — the choice when the hull’s deadrise angle is minimal. All versions have a nearly flush housing minimizes drag with only 5 mm (3/16″) extending outside of the hull.

Key Features

• Ideal depth-only transducer for low-power fishfinders
• Designed for use on fiberglass and wood boat types, power and sail
• Nearly flush housing minimizes drag with only 3/16″ protruding outside of hull
• Ceramic element inside housing is tilted for built-in deadrise compensation – 0° version ideal choice for minimal hull deadrise angles
• Right-angle cable exit offers low headroom and protection when transducer is stepped on
• Rubber washer (included) allows tightening of hull nut to irregular hull surfaces
• Housing is ABYC H-27 compliant
• Suitable for cruising powerboats and sailboats up to 30′ in length
• Compatible with Raymarine ST40, i40, ST60, i50, ST290, ST70* and i70*

*Note: Use with an ST70 or an i70 instrument requires use of an iTC5 Instrument Transducer Converter (E70010)

Specifications

• Style: Thru-hull
• Cable Length: 45′
• Monitors: Depth and Temperature
• Material: Plastic
• Transmit Power: 350W (RMS)
• Frequency: 200 kHz
• Max. Depth: 700′
• Acoustic Window Material: Urethane
• Compatible Hull Materials: Fiberglass or wood
• Hole Diameter for Installation: 2″
• Beamwidths: 11°
• Hull Deadrise Angle: 0°compensation for hull deadrises of 0°to 7°
