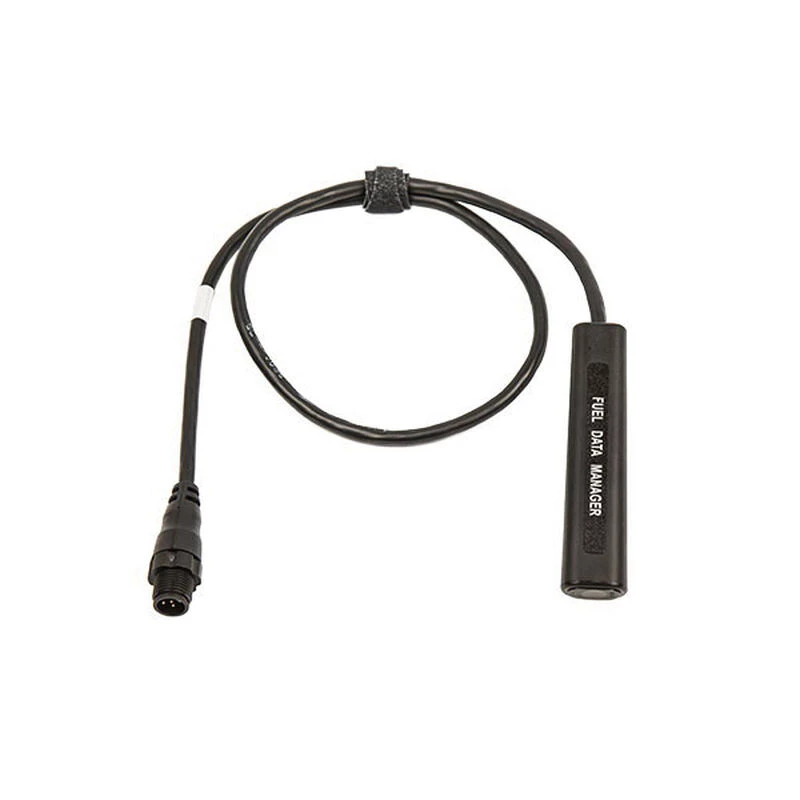

SIMRAD Fuel Data Manager

Fuel Data Manager monitors fuel rates from multiple engines transmitting through a single gateway.

This fuel data manager stores data for fuel used, trip fuel used, and seasonal fuel used from a compatible engine or engine interface connected to your NMEA 2000 network. A single fuel data manager can support up to three engines. For installations with more than three engines, use a second fuel data manager sensor.

Key Features

• Replaces EP-85
• Cable Length: 1 1/2′ (.5 m)
• Connects to network with NMEA 2000 engines
• Accumulates date on fuel used from the fuel flow data available from compatible NMEA 2000 engines or engine interfaces
• Supports up to three engines per sensor
• Can only be configured by compatible Lowrance or Simrad displays and gauges
• Monitors Fuel Rate/Fuel Flow from NMEA 2000 engines, and accumulates Fuel Rate into Fuel Used
• Outputs: Seasonal/Trip/Total Fuel Used
• Will report accurate Vessel Fuel Remaining if MFD Fuel screen is maintained at every refuel
• Additional Fuel Data Managers can be added for more engines
• Will monitor fuel rates from multiple engines transmitting through a single gateway

PGNs Transmitted

• 59392 – ISO Acknowledgment
• 60928 – ISO Address Claim
• 126996 – Product Information

What’s in the Box

• Fuel Data Manager
• NMEA 2000 T-Joiner
