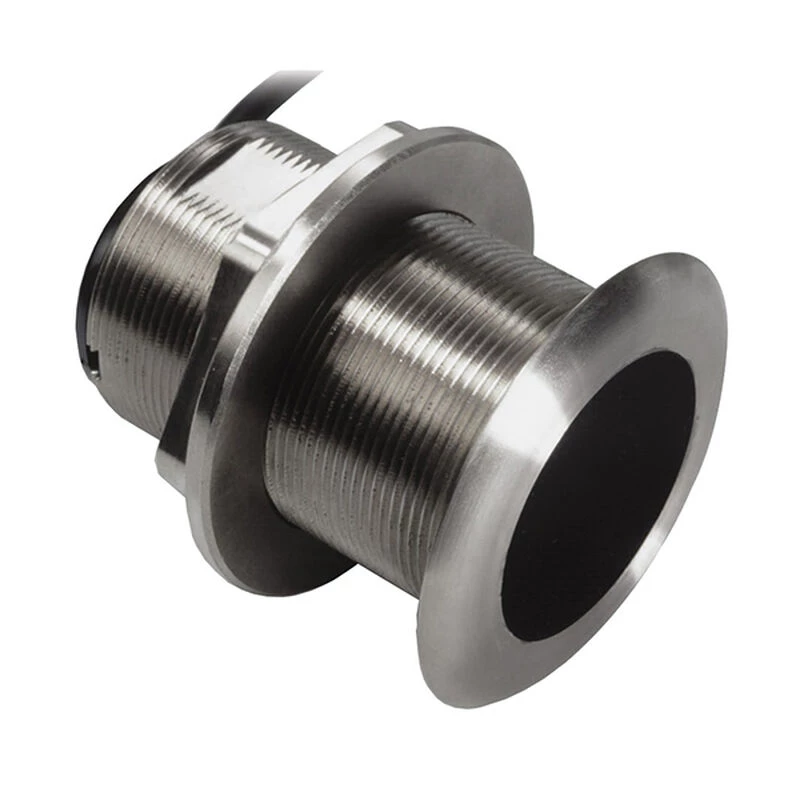

SIMRAD xSonic SS60 0° Tilt Thru-Hull Dual Frequency Transducer

Engineered for center-console and trailered boats.

The xSonic SS60 is a stainless-steel, 0° tilt, thru-hull 50/200kHz Broadband transducer. Ideal for smaller sportfishing and commercial vessels up to 25′ in length, the SS60 is best suited for fishing in depths of less than 3000 ft. The 0° tilt is ideal flat-bottomed boats with up to 8° hull deadrise.

The SS60 is the stainless steel version of Airmar’s popular B60 bronze tilted element transducer. SS60 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in deadrise compensation. The resulting vertical beam returns crisp echoes for more-accurate depth readings.

The nearly-flush housing minimizes drag with only 5 mm (3/16″) extending outside of the hull. The SS60 is currently being used by the US Coast Guard.

Key Features

• Engineered for center-console and trailered boats
• Low-profile protrusion below the hull
• No effect on your boats running performance
• Arrow on cap points toward keel when installed
• Built-in temperature sensor
• Boat Size: Up to 25’
• Fixed 0° tilted version for 0° to 7° hull deadrise

Specifications

• Style: Thru-hull
• Cable Length: 30′ with 9-Pin connector
• Monitors: Depth and Temperature
• Material: Stainless steel
• Transmit Power: 600W (RMS)
• Frequency: 50/200 kHz
• Max. Depth: 800′-1.200′
• Acoustic Window Material: Urethane
• Compatible Hull Materials: Fiberglass or wood
• Hole Diameter for Installation: 2″
• Beamwidths: 45°/12°
• Hull Deadrise Angle: 0° compensation for hull deadrises up to 7°
