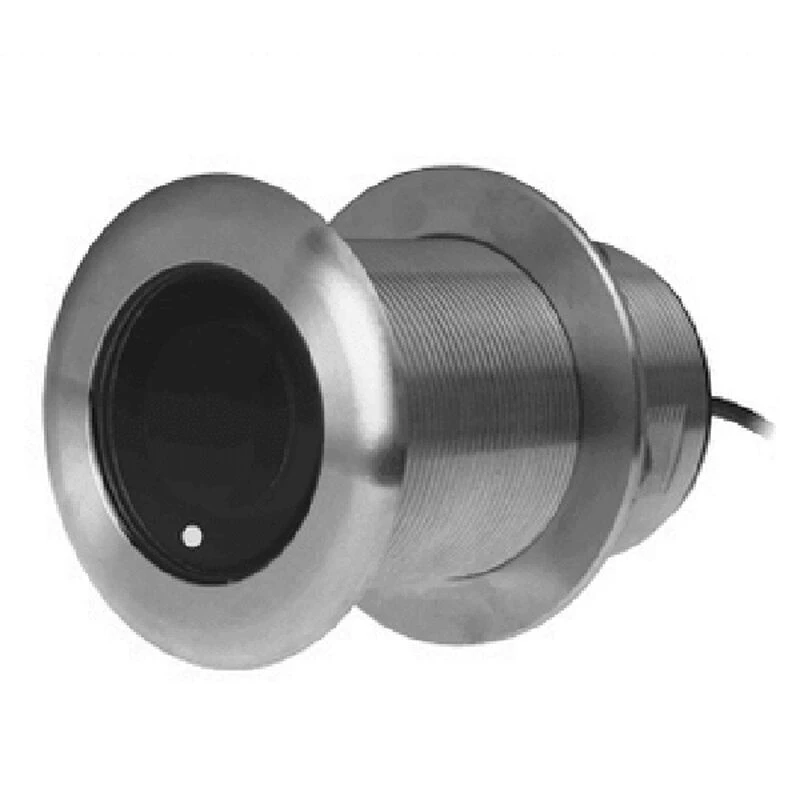

SIMRAD xSonic SS75M 12° Tilt Thru-Hull Medium CHIRP Transducer

Medium frequency CHIRP thru-hull with 50kHz of total bandwidth delivers great performance for smaller fishing boats.

The xSonic SS75M is a stainless steel thru-hull, tilted element medium- frequency (80-130 kHz), depth and temperature CHIRP transducer. The ceramic element is tilted 12° for built-in deadrise compensation, so it is a good fit for boats with a 12° to 19° hull deadrise,  giving excellent echo returns for accurate depth readings.

Key Features

• Same elements and performance as the B765M offered in a low-profile housing
• Depth and fast-response water temperature sensor
• CHIRPS from 80kHz to 130kHz with 24° to 16° beamwidth
• 50kHz of total bandwidth from one transducer
• Covers popular fishing frequencies 88 and 107kHz plus everything else in the bandwidth
• All the advantages of the larger thru-hull Chirp transducers, but is suitable for smaller boats
• Stainless steel transducer housing
• Boat Size: Up to 25′
• Hull Type: Steel or aluminum

Specifications

• Style: Thru-hull
• Cable Length: 33′
• Monitors: Depth and temperature
• Hull Deadrise Range: 12° to 19°
• Material: Stainless steel
• Acoustic Window: Urethane
• Connector: 9-pin xSonic
• Transmit Power: 600W (RMS)
• Frequency Range: Medium CHIRP (80-130kHz)
• Max. Depth: 900′
• Beamwidth: 24° to 16°
